Key Features

1. Fully compliant with DVB-S/S2 digital tv standard.
2. Support multi-standard Video Decoder including H.265/HEVC, H.264, MPEG4/2
3. Support 8bit Color Depth

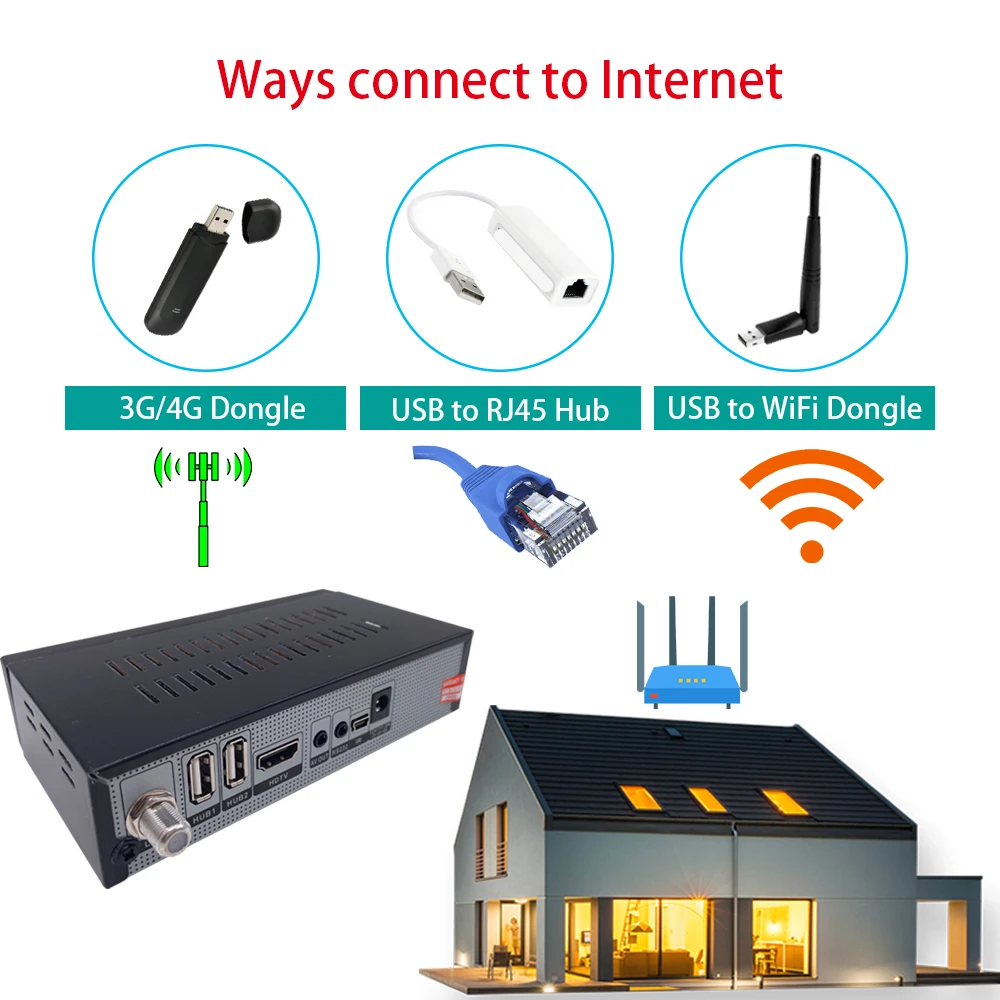

4. Compatible with USB Wi-Fi Dongle (MT7601&RT5370)
4. Compatible with USB Ethernet RJ45 Dongle (SR9800/AX8872A/AX8872B)
5. Support PVR, TimeShift, 7days EPG, Timer, Multi-Media Playback from USB storage device
6. Support YouTube, IPTV(m3u)
7. Support MeeCast (DLNA, Virtual Remote Control, Cast Screen,...), MeeTube, YouTube Kids
8. Multi-OSD languages: English, French, Spain, Italian, German, Russian, Dutch, Czech
9. Intelligent Graphical User Interface design (UI)

Main Chipsets

CPUGX6605H
DDR2 MemoryEmbedded with 1GB DDR2
Flash Memory8MB SPI flash
TunerRDA5815
Digital TV StandardDVB-S/S2
Input Symbol Rate2~90MSPS

DVB-S/S2 Tuner & Demodulation

Digital TV StandardDVB-S/S2
Input Symbol Rate2~90MSPS
Frequency Range950 ~ 2150MHz
RF Input Level-65dBm ～ -25dBm
ConstellationsQPSK, 8PSK, 16APSK, 32APSK
Antenna Power Output13V, 18V, Auto, Overload Protection
Code Rate75Ω
Code Rate1/2, 1/3, 2/3, 1/4, 3/4, 2/5, 3/5, 4/5, 5/6, 8/9, 9/10

Video
Decoder
H.265/HEVC video decoding
MPEG-4/H.264 MP&HP and ML&HL; MPEG-2 MP@ML
H.263 P3; AVS; AVS plus; MPEG-2 video (ISO/IEC 13818-2), MP@HL; MPEG-1 video (ISO/IEC 11172-2)
Decoding up to 1920×1080p;

Audio
Decoder
MPEG1 I/II, MP3 decoding; MPEG-4 AAC and AAC plus (HE-AACv1 and v2) decoding;
Optionally supports Dolby Digital (AC-3) decoding; Dolby Digital Plus (DD+) decoding
Single channel, dual channel, stereo, and joint stereo modes supported
Mutes and attenuator supported;

Hardware specifications

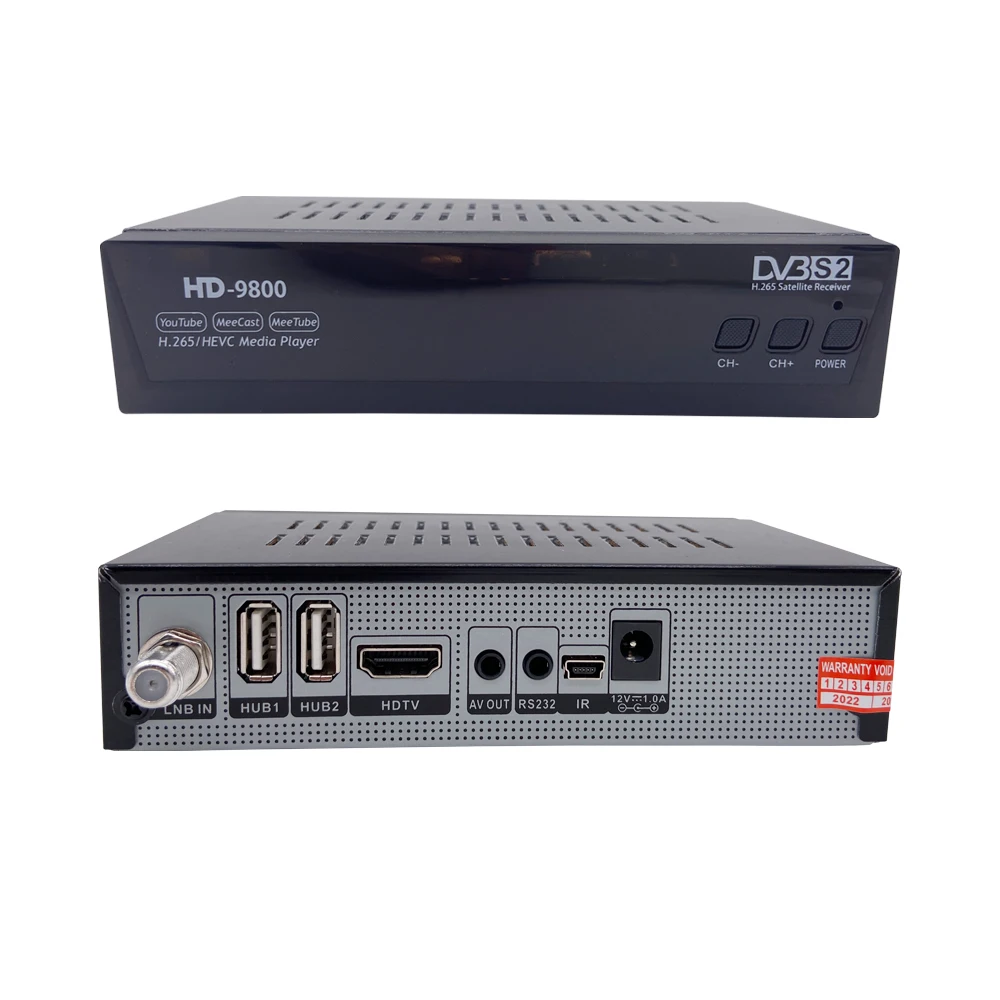

Front Panel
4 digital LED dispay
Remote Conontroller Infrared Radiation Receiving Sensor
3 buttons: Power On/Off, CH+/-, OK

Rear Panel
LNB IN (input signal from the Antenna)
2*USB 2.0 host
HDTV
Mini-Jack for CVBS+R/L Audio
RS232
IR extender socket
DC IN (12V/1A)

USB Decoding

USB Storage Device USB Pen Drive or HDD under FAT/FAT32/NTFS formats supported, up to 1TB
PVR (REC) USB 2.0 for PVR (Record Program & Playback), Timeshift (Pauze Life TV)
Video .mkv/.avi/.mp4/.mov/.ts/.mp3/.jpg/.bmp
Audio WMA,MP3
Photo JPG, BMP, PNG, GIF
OSD Languages"English, French (français), Spain (España), Italian (italiano), German (Deutsch)
Russian (русский), Dutch (Nederlands), Czech (čeština) "

PAL/NTSCAll of the PAL and NTSC analog TV standards supported
EPGsupports 7 days Electronic Program Guide (EPG)

Sortware Features

Channel Searchsupports Super Blind Search
Channel Editsupports Move, Lock, Fav, Skip, Delete, Rename
Channel Groupsupports 8 Favourite Groups
Sort Channelsupported
Timersupports 4 kinds of Timer (PVR/PLAY/Power On/Power Off) and up to 8 timer events
USB PVRsupports program record and save it to USB storage device
USB Timeshiftsupports pauze live tv by timeshift function
Parental ControlsupportedSoftware Upgrade via USB or Network
USB disk formatFAT, FAT32, NTFSSubtitle YES
USB to WiFi DongleSupports RT5370 and MT7601Teletext YES
USB to RJ45 Donglebest compatible with SR9800, AX8872A, AX8872B

Network Apps:YouTube, IPTV (import m3u file from USB); MeeTube, YouTube Kids MeeCast (DLNA): Cast/Mirror Screen, Virtual Remote Control, Cast local/Internet multi-media,…

Electrical parameters

Power SupplyDC 12V/1A
Power Consumption7W in Working Mode, 1W in Standby Mode
TemperatureWorking 0～+45℃; Storage -10~+65℃
Humidity30~90%, non-condensed

Packing (EU Plug)

Product Dimension 148*80*38mmPackaged Size 177*177*50mm
Carton Size 370x275x370mmUnit Weight 0.445 Kg/Unit
Quantity/Carton 20pcs/CTNSWeight/Carton 9.36 Kg/CTNS

Attention

All trademarks or names herein are used for identification purposes only and owned by their respective owners. The products (listed in this document) not yet contain any authorizations/licenses from these trademarks/names/patents. Please consult us in advance if these authorizations/licenses are necessary.
